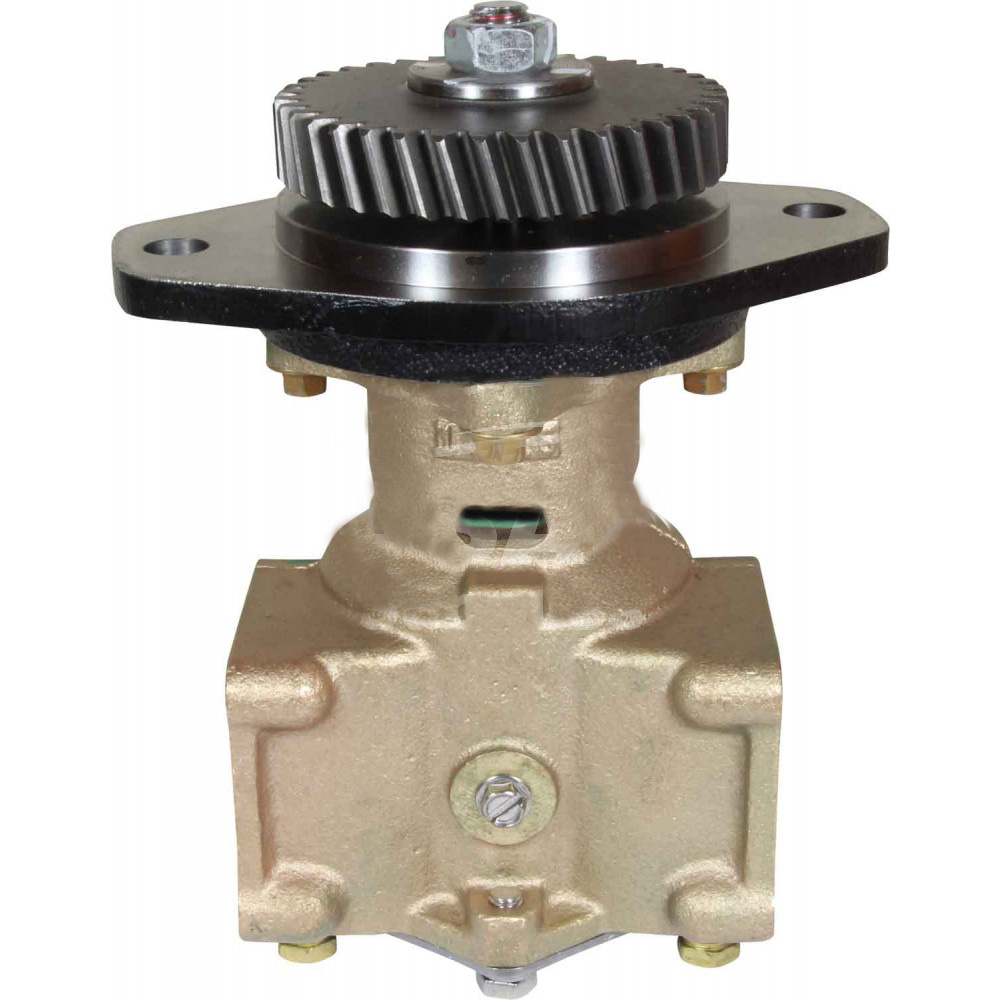

Sherwood P1730C Engine Cooling Pump
Ürün Açıklaması
| Brand | Sherwood |
|---|---|
| Model | P1730C |
| Inlet / Outlet | Flanged Ports |
| Drive Type | Gear Driven |
| Replacement Impeller | SW17000K |
| Repair Kit | SW25122 Major Kit, SW25124 Minor Kit |
| Replaces | Sherwood Pumps: P1730, P1730-01, P1730-02, P1730-04, P1730A, P1730F-01, P1730F-02, P1730F-04, P1730X, P1731F-01, P1731F-02 & P1731F-042, Cummins P1730SBD, 3866493, 3897691, 3964765, 4003526, 5265994, 5265995, 5265996 & 5265999 Pumps |
| Applications | Cummins 6CTA 8.3 D (M) and Cummins 6BT Engines |
| Mounting | Flange Mount |
Sherwood 1730C Engine Cooling Pump. Cummins 6C-Series Engine Cooling Pump. Replaces Cummins part number 3866493, 3964765, 4003526, 5265994, 4003526, ç, 526599600, 5265999, 526599900 and 5265994 6C Series, flanged ports. Replaces Sherwood older part P1730X and P1730A. Also replaces Sherwood SW9037. Sold without port elbow water fittings. Order replacement impeller kit SHR17000-K. If needed order mounting gasket Cummins part CUM3008400, flange o-ring SHR21525.
| FEATURES | |
| Pump Body: | Bronze |
| Ports: | Flanged |
| Cam: | Full |
| Impeller: | Neoprene |
| Shaft Seal: | Mechanical |
| Drive: | Flange Mounted to Engine. Mounting Flange is Tilted 11 Degrees from Horizontal. |
impeller: 17000K
Minor Repair Kit: 25124
Major Repair Kit: 25122
Seal & Seat / Lip Seal: 25115 / 19674
Bearing Assembly & Shaft : 25120
Sherwood 1730C Engine Cooling Pump. Cummins 6C-Series Engine Cooling Pump. Replaces Cummins part number 3866493, 3964765, 4003526, 5265994, 4003526, 5265996, 526599600, 5265999, 526599900 and 5265994 6C Series, flanged ports. Replaces Sherwood older part P1730X and P1730A. Also replaces Sherwood SW9037. Sold without port elbow water fittings. Order replacement impeller kit SHR17000-K. If needed order mounting gasket Cummins part
| Brand | Sherwood |
|---|---|
| Model | P1730C |
| Inlet / Outlet | Flanged Ports |
| Drive Type | Gear Driven |
| Replacement Impeller | SW17000K |
| Repair Kit | SW25122 Major Kit, SW25124 Minor Kit |
| Replaces | Sherwood Pumps: P1730, P1730-01, P1730-02, P1730-04, P1730A, P1730F-01, P1730F-02, P1730F-04, P1730X, P1731F-01, P1731F-02 & P1731F-042, Cummins P1730SBD, 3866493, 3897691, 3964765, 4003526, 5265994, 5265995, 5265996 & 5265999 Pumps |
| Applications | Cummins 6CTA 8.3 D (M) and Cummins 6BT Engines |
| Mounting | Flange Mount |
The raw water engine cooling pump is the heart of the marine engine, supplying a continuous flow of raw water to maintain temperatures consistent with the demanding engine performance. Over the years, Sherwood raw water pumps have developed a reputation of excellence in quality; and today are chosen for their performance and dependability by the most prestigious marine engine manufacturers.
Sherwood pumps are one of the largest suppliers of flexible rubber impeller cooling pumps for marine engines in the USA. Sherwood pumps can be found fitted on some of the most well known engine brands in both pleasure and commercial boats.
This is a genuine Sherwood P1730C flange mounted boat engine cooling pump, using raw water intake (river water or sea water) to cool the engine. The Sherwood P1730C is supplied complete with a 12 vane through threaded and key drive flexible neoprene impeller.
To ensure that your boat engine cooling pump performs as required, regular preventative maintenance and inspection should be carried out. The Sherwood engine cooling pump impeller should be replaced every 3 - 12 months depending on application.
The number one reason for premature engine wear is overheating. To maintain engine performance, insist upon genuine Sherwood impeller pumps, impellers and service kits.
The Sherwood P1730C flexible impeller engine cooling pump replaces the Sherwood pump models P1730, P1730-01, P1730-02, P1730-04, P1730A, P1730F-01, P1730F-02, P1730F-04, P1730X, P1731F-01, P1731F-02 and P1731F-04.
Typical applications for the Sherwood P1730C pump include: Cummins 6CTA 8.3 D (M) and Cummins 6BT engines, replaces Cummins pumps: P1730SBD, 3866493, 3897691, 3964765, 4003526, 5265994, 5265995, 5265996 and 5265999.
